DIE GRINDERS
0401
1/8″ Collet
(3/32″ included)
1201-24-18
1/8″ Collet
Reducer Insert
1201-24-18C
1000
2000
1181
Button Lock-Off Lever
1080
2080
2080-6
DG-22L
9113
“MADE in USA”
Erickson
Collet
Collet
9113-ES
“MADE in USA”
Patented “Self-Generating” light source. No batteries needed!
LDG-40-220
Illuminate your work
with no danger of
electric shock
No more drop lights
and extension cords!
“MADE in USA”

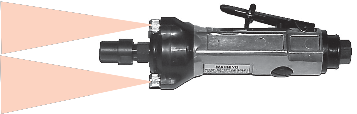

“LIGHTED” Die Grinder
| MODEL | EXHAUST | RPM | COLLET (CHUCK) SIZE. (in.) | OUTSIDE DIAMETER (in.) | HP | LENGTH (in.) | WEIGHT (lbs.) | AIR INLET NPT (in.) |
|---|---|---|---|---|---|---|---|---|
| 0401 | REAR | 60000 | 1/8 | 5/8 | .1 | 5 3/4 | .25 | 1/4 |
| 1000 | FRONT | 30000 | 1/4 | 1 5/16 | .25 | 5 1/4 | .80 | 1/4 |
| 1080 | REAR | 30000 | 1/4 | 1 5/16 | .25 | 5 1/2 | .80 | 1/4 |
| 1082 | REAR | 25000 | 1/4 | 1 5/16 | .25 | 5 1/2 | .80 | 1/4 |
| 1181 | REAR | 25000 | 1/4 | 1 5/16 | .25 | 11 1/8 | 1.40 | 1/4 |
| 2000 | FRONT | 25000 | 1/4 | 1 5/8 | .50 | 5 1/4 | 1.30 | 1/4 |
| 2080 | REAR | 25000 | 1/4 | 1 5/8 | .50 | 6 5/8 | 1.40 | 1/4 |
| DG-22L | REAR | 22000 | 1/4 | 1 5/8 | .50 | 6 5/8 | 1.40 | 1/4 |
| 2080-6 | REAR | 25000 | 1/4 | 1 5/8 | .50 | 13 1/8 | 2.90 | 1/4 |
| 9113 | FRONT | 25000 | 1/4 | 1 3/4 | 1.00 | 6 3/8 | 2.40 | 1/4 |
| 9113-ES | SIDE | 25000 | 1/4 | 1 3/4 | 1.00 | 11 1/8 | 3.40 | 1/4 |
| LDG-40-220 | REAR | 22000 | 1/4 | 2 1/4 | .40 | 7 5/8 | 1.30 | 1/4 |
